Ag-IQ Almond Yield Mapper

The Ag-IQ Almond Yield Mapper is designed to assist almond growers understand the variation in yield within and between blocks.  The Ag-IQ Almond Yield Mapper measures the flow of almonds from the harvester into the reservoir cart.

The console records data every 5 seconds (approximately every 4 meters) when the harvester is moving.  The data stored on a micro SD card includes:-

1.  Variety

2.  UTC and local date and time

3. Position (latitude, longitude, altitude and their respective accuracy)

4. Ground speed (km/h)

5. Flow rate of almonds (as a percent of full flow)

6. Yield of almonds (kg/m, kg/ha)

7.  Accumulated mass (kg)

8. Calibration factors (wheel distance per rev, yield factor).

The data is taken via the SD card to a computer and yield maps can be created using software such as ArcGIS or QGIS etc.

Features

• Easy installation.

• No need to change field operations.

• Easy to follow instructions to calibrate, set up and operate.

• Display of live data to ensure it is being collected.

• No need for cell phone coverage.

• Easy data transfer and map creation at no extra costs.

• Accumulation total of almonds in reservoir cart (requires a reset each time cart is emptied).

• Menu to select variety being picked up to keep track of yields.

Benefits

“Every tree in an orchard is a productive unit.  If it does not perform 100% it reduces the average performance of every other tree. Individual non-performers can accumulate rapidly yet be lost in the overall good block appearance. It takes an eye for detail, action on observation, and follow up on action to maximise productivity.”

Almond yield mapping allows knowledge of each individual tree’s performance from which interventions can be made.

Specifications

Data stored to micro SD card of capacity up to 16 GB which will hold many years of data.

2” colour LED display showing time, position, flow, accumulated mass, data save and warning messages if error occurs.

In-cab console size is 100 x 65 x 75 mm.

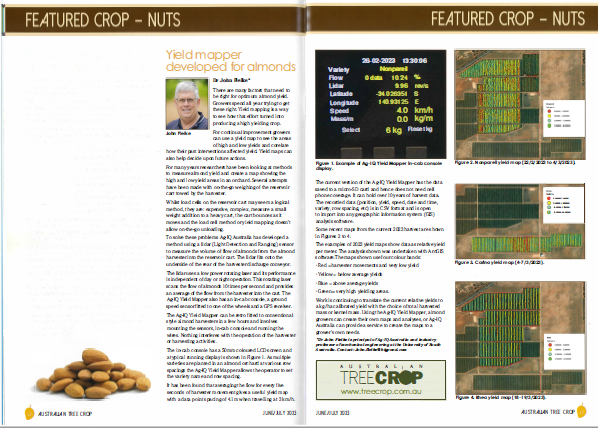

Article about Ag-IQ Yield Mapper in Tree Crop magazine June/July 2023

Available from

Australia
Ag-IQ Australia
john.fielke@bigpond.com
ph +61 407 676 190
$A5,000 (excl 10% GST)

California, USA
Flory Industries
4737 Toomes Rd, Salida CA 95368
ph +1 800 662 6677
